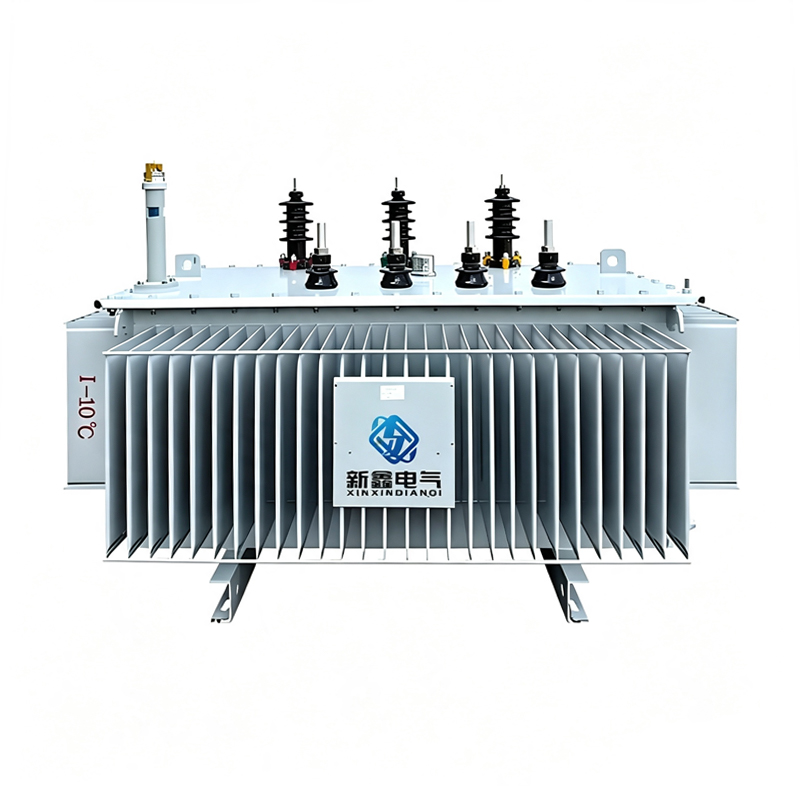

S(B)H Series Amorphous Alloy Oil Immersed Transformer

1. What is the difference between S(B)H Series and conventional oil immersed transformers?
The main difference is the core material.
The S(B)H Series Amorphous Alloy Oil Immersed Transformer uses amorphous alloy core technology, while conventional Oil Immersed Transformers generally use silicon steel cores.
The amorphous alloy core can reduce no-load loss by approximately 60%–80% compared with conventional silicon steel core products. Load loss mainly depends on winding materials and electromagnetic design.

2. What projects are suitable for Amorphous Alloy Oil Immersed Transformers?
These transformers are suitable for projects with long energization periods, lower average load rates, significant load variations, or clear energy-saving requirements.
Typical applications include distribution networks, industrial facilities, renewable energy projects, and infrastructure systems.

3. Can copper and aluminum windings both be selected?
Yes.
Copper and aluminum winding solutions can be selected according to efficiency requirements, load loss, weight, cost, mechanical strength, and customer specifications.

4. What is the difference between ONAN and ONAF cooling?
ONAN uses oil natural circulation and air natural cooling.
ONAF adds forced air cooling to improve heat dissipation capability.
The suitable cooling method depends on thermal design, operating conditions, and project requirements.

5. Can the transformer be designed for high temperature and high altitude environments?
Yes.
The transformer can be designed for special environments such as 50℃ maximum ambient temperature and installation above 1000 m altitude.
Actual temperature, altitude, ventilation conditions, and load profile should be provided for proper design verification.

Amorphous Alloy Energy-Saving Technology
The Amorphous Alloy Oil Immersed Transformer uses amorphous alloy core material with high magnetic permeability, low coercivity, and low hysteresis loss characteristics.
Compared with conventional silicon steel core Oil Immersed Transformers, the product can reduce no-load loss by approximately 60%–80%.
This energy-saving advantage makes the Amorphous Alloy Transformer especially suitable for distribution systems with long operating hours, continuous energization, and relatively low average load rates.
Reduced core loss helps lower long-term energy consumption and improve overall power distribution efficiency.

Fully Sealed Corrugated Oil Tank Design
The fully sealed corrugated oil tank combines heat dissipation and oil volume compensation functions without requiring an additional oil conservator.
The sealed structure reduces direct exposure between insulating oil and external air, helping slow oil oxidation and improve long-term operating stability.
This design is suitable for projects requiring reliable operation and reduced maintenance requirements.

Vacuum Drying and Oil Filling Process
The transformer body undergoes controlled drying treatment after assembly and is then vacuum oil-filled.
This process improves insulating oil penetration into solid insulation materials and helps enhance insulation consistency, heat dissipation performance, and operating reliability.

Winding and Mechanical Strength Design
The S(B)H Series supports oxygen-free copper or high-quality aluminum conductors according to project requirements.
The winding structure is designed according to capacity, current density, short-circuit mechanical stress, and temperature rise requirements to ensure stable operation under different conditions.

Flexible Cooling and Monitoring Options
The product supports ONAN natural cooling and optional ONAF forced air cooling.
Temperature, oil level, pressure, and integrated monitoring functions can be configured according to project requirements.
Optional monitoring systems help improve operating status evaluation and support intelligent power distribution management.

Complete Transformer Product Capability
Jiangsu Xinxin Electric provides transformer solutions covering:
Oil Immersed Transformers
Amorphous Alloy Oil Immersed Transformers
Dry Type Transformers
Cast Resin Dry Type Transformers
Box substations
Related power distribution equipment
This enables EPC contractors, distributors, and industrial customers to coordinate multiple transformer and power distribution requirements through one supplier.

Manufacturing & Quality Control
Production is managed through controlled manufacturing and inspection processes, including:
Amorphous alloy core processing
Winding production
Transformer body assembly
Vacuum drying
Vacuum oil filling

Final assembly and routine testing
Key materials, including amorphous alloy strips, copper/aluminum conductors, insulation materials, transformer oil, bushings, and accessories, are inspected according to technical requirements.
Quality control includes:
Technical review
Incoming material inspection
Core and winding process inspection
Insulation and assembly inspection
Drying, oil filling, and sealing inspection
Electrical routine testing
Final document approval

Engineering Documentation & International Project Support
Jiangsu Xinxin Electric supports international projects with technical documents prepared according to IEC, GB, ANSI, or customer-specific requirements.
Available documents include:
Technical data sheets
Assembly drawings
Electrical drawings
Nameplates
Test reports
Packing documents
English project documentation
The company can support project coordination related to technical approval, documentation review, packaging, and delivery requirements.
