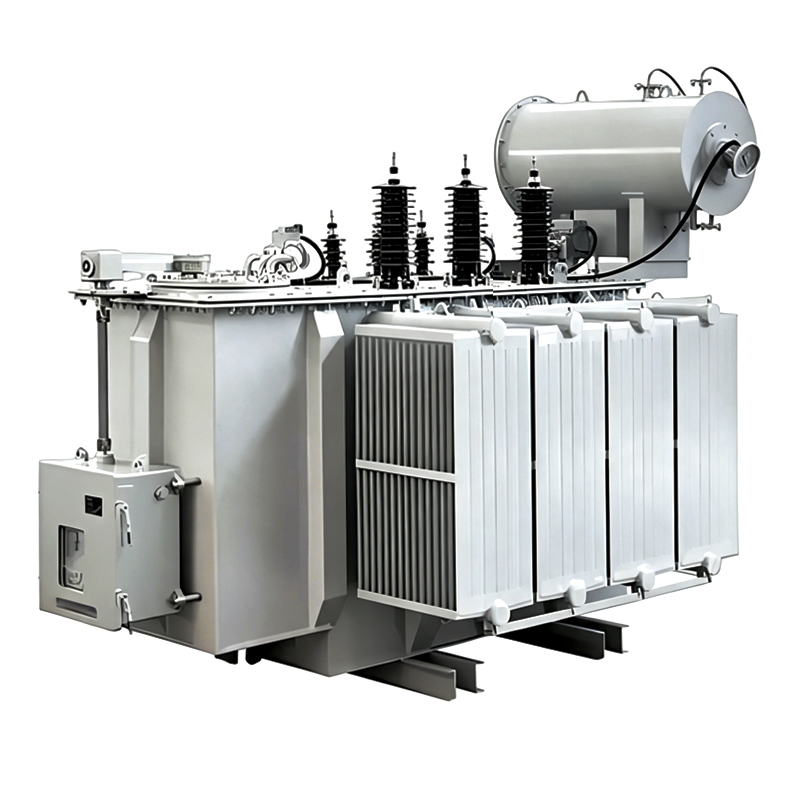

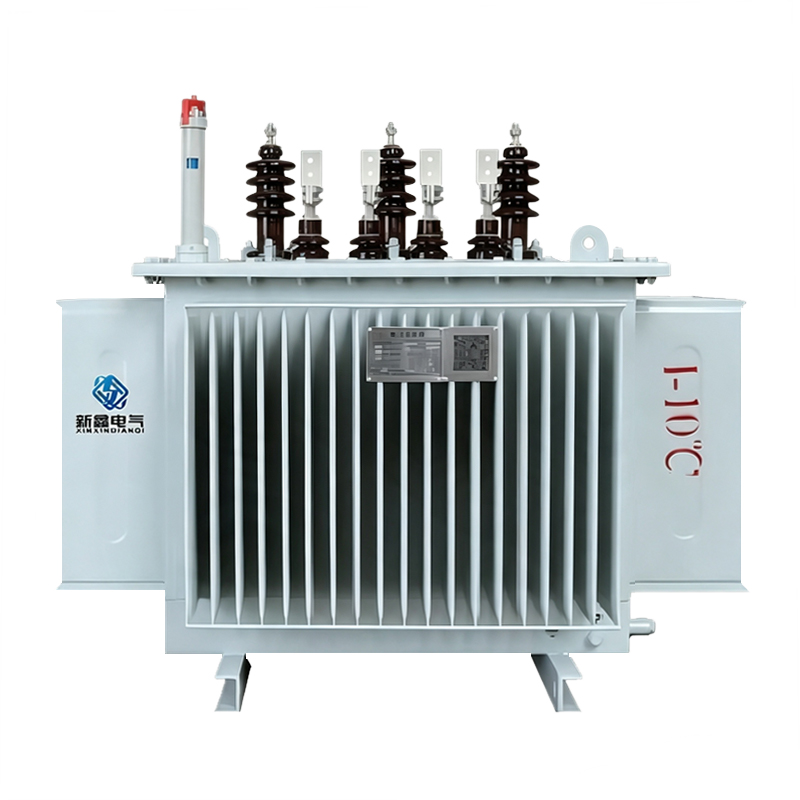

S Series Oil immersed Transformer

S Series Oil Immersed Transformer is designed for medium voltage power distribution systems, providing reliable voltage conversion, stable operation, and long service life for utility networks, industrial facilities, infrastructure projects, and renewable energy applications.

As a key product within Oil Immersed Transformers, the S Series adopts cold rolled grain-oriented silicon steel core, copper or aluminum windings, insulating oil, and fully sealed corrugated oil tank technology. The product covers S9, S11, S13, S20, and S22 energy efficiency series to meet different distribution requirements.

The transformer adopts vacuum drying, vacuum oil filling, and sealing inspection processes to improve insulation reliability and operating stability. It supports ONAN natural cooling and optional ONAF forced air cooling, with optional monitoring accessories including oil temperature, oil level, pressure, gas relay protection, and remote monitoring systems.

As an Oil Immersed Distribution Transformer, the S Series can be customized according to project requirements, including capacity, voltage level, frequency, winding material, voltage regulation, cooling method, protection accessories, and environmental adaptation.

Contact Us
PREV：S-MD Series Underground Oil Immersed Transformer NEXT：No next article
  • Product Details
  • FAQ
Product Type
S Series Oil Immersed Transformer
Rated Capacity
30 kVA–6300 kVA
Voltage Level
6 kV–35 kV
Core Material
Cold Rolled Grain-Oriented Silicon Steel
Winding Conductor
Copper or Aluminum
Cooling Method
ONAN; ONAF Optional
Frequency
50 Hz / 60 Hz
Voltage Regulation
Off-circuit Tap Changer; OLTC Optional
Tank Structure
Fully Sealed Corrugated Oil Tank
Energy Efficiency Series
S9 / S11 / S13 / S20 / S22
Special Environment
High Temperature, High Altitude, Salt Fog, Humidity, Dust, Corrosion Protection
Monitoring Options
Oil Temperature, Oil Level, Pressure, Gas Relay, Remote Monitoring
Design Standards
IEC 60076, GB/T 1094, ANSI/IEEE or Customer Specifications

1. What is an Oil Immersed Distribution Transformer used for?
An Oil Immersed Distribution Transformer is used in medium voltage power distribution systems to convert voltage levels and provide reliable electricity supply.
The S Series is commonly applied in utility networks, industrial facilities, infrastructure projects, and renewable energy systems.

2. What is the difference between Oil Immersed Transformers and Dry Type Transformers?
Oil Immersed Transformers use insulating oil for insulation and heat dissipation, making them suitable for outdoor distribution networks, utilities, and industrial applications.
Dry Type Transformers do not contain insulating oil and are commonly selected for indoor applications with higher fire safety requirements.
The selection depends on installation environment, safety requirements, maintenance conditions, and lifecycle cost.

3. How should S9, S11, S13, S20, and S22 transformers be selected?
Different series represent different design platforms and energy efficiency levels.
Selection should consider:
Applicable standards
Guaranteed no-load loss
Load loss
Operating hours
Load characteristics
Project efficiency requirements

4. What are the differences between ONAN and ONAF cooling?
ONAN uses natural oil circulation and natural air cooling.
ONAF adds forced air cooling through fans to improve heat dissipation capability.
The suitable cooling method depends on transformer capacity, thermal design, ambient temperature, and operating conditions.

5. Can Jiangsu Xinxin Electric provide customized Oil Immersed Distribution Transformers?
Yes.
As an Oil Immersed Distribution Transformer Manufacturer, Jiangsu Xinxin Electric provides OEM and ODM solutions including:
Electrical parameter customization
Structural design
Accessory configuration
Environmental adaptation
Branding and technical documentation

  • Product Features

Energy Efficient Core Design
The Oil Immersed Transformer uses cold rolled grain-oriented silicon steel core with optimized magnetic circuit design and 45° mitered joints.
The low-loss core structure helps reduce no-load loss, no-load current, and operating noise, improving energy efficiency for long-term power distribution operation.
The transformer can be configured according to different energy efficiency requirements, with performance evaluated based on guaranteed loss values and project operating conditions.

Reliable Winding and Short-Circuit Performance
Copper or aluminum winding solutions are available according to project requirements.
The winding structure is designed according to current density, temperature rise, impedance, and short-circuit mechanical strength requirements to ensure reliable operation under different load conditions.

Fully Sealed Corrugated Oil Tank
The fully sealed corrugated oil tank integrates heat dissipation and oil volume compensation functions.
The sealed structure reduces direct contact between insulating oil and external air, helping slow oil oxidation and reduce maintenance requirements.
Vacuum drying and vacuum oil filling processes improve insulation performance and long-term operating reliability.

Flexible Cooling and Monitoring Configuration
The S Series Oil Immersed Transformer supports ONAN natural cooling for standard applications.
For higher heat dissipation requirements, ONAF forced air cooling can be configured according to project conditions.

Optional accessories include:
Oil temperature indicators
Oil level indicators
Pressure relief devices
Gas relay protection
Temperature monitoring systems
Remote communication interfaces
Adaptation for Different Environments

The Oil Immersed Distribution Transformer can be designed for various operating environments, including:
High temperature areas
High altitude installations
Coastal salt fog environments
Humid conditions
Dusty industrial locations
Corrosive environments
Customized solutions may include enhanced sealing, insulation coordination, cooling optimization, and corrosion protection.

  • Application Fields
Application Area
Typical Applications
Industries Served
Power Distribution Networks
Urban distribution networks, rural grid upgrades, utility substations, energy-saving distribution projects
Utilities, power distribution companies, EPC contractors
Industrial Facilities
Manufacturing plants, mining projects, petrochemical facilities, steel plants, industrial parks
Industrial companies, EPC contractors, electrical system integrators
Renewable Energy Projects
Solar power plants, wind power projects, energy storage systems, auxiliary power supply systems
Renewable energy developers, system integrators, EPC companies
Infrastructure Projects
Airports, ports, rail transit, municipal facilities, public infrastructure
Infrastructure contractors, engineering companies
Commercial Power Systems
Commercial buildings, business parks, building distribution systems
Building contractors, electrical contractors, property developers

  • OEM·ODM

Jiangsu Xinxin Electric provides OEM, ODM, and customized Oil Immersed Transformer solutions for utilities, EPC contractors, distributors, and equipment manufacturers.
Customized solutions are developed according to technical specifications, drawings, environmental conditions, and project requirements.

Customization Module Available Options
Electrical Design: Capacity, voltage, frequency, vector group, impedance, tap range, loss requirements, temperature rise
Structural Design: Tank dimensions, terminal arrangement, cable connection, base structure, lifting points
Environmental Adaptation: High temperature, high altitude, salt fog, humidity, dust, corrosion protection
Regulation & Protection: OLTC, off-circuit tap changer, temperature monitoring, oil level monitoring, pressure protection
System Integration: Switchgear, ring main units, protection systems, SCADA and monitoring interfaces
Branding & Documents: OEM nameplate, labels, manuals, drawings, packaging marks, technical documents

  • Why Choose Us

Complete Transformer Product Capability
Jiangsu Xinxin Electric provides transformer solutions including:
Oil Immersed Transformers
Oil Immersed Distribution Transformers
Dry Type Transformers
Amorphous Alloy Transformers
Box Type Substations
This allows EPC contractors, distributors, and system integrators to coordinate different power distribution requirements with one supplier.

Engineering Customization Capability
The company supports project-specific design covering:
Electrical parameters
Mechanical structure
Cooling methods
Protection accessories
Environmental adaptation
Technical documentation
All solutions are reviewed according to approved specifications and project requirements.

Quality Control and Project Support
Manufacturing follows controlled procedures including:
Technical review
Material inspection
Core and winding process control
Vacuum drying and oil filling
Assembly inspection
Electrical testing

Jiangsu Xinxin Electric can provide:
Technical data sheets
Drawings
Test reports
Nameplates
Operation manuals
Export documentation according to IEC, GB, ANSI/IEEE, or customer-specific requirements.
