Single Phase Pole Mounted Transformer

Home / Products / Oil Immersed Transformers / Single Phase Pole Mounted Transformer

  • Single Phase Pole Mounted Transformer

Single Phase Pole Mounted Transformer

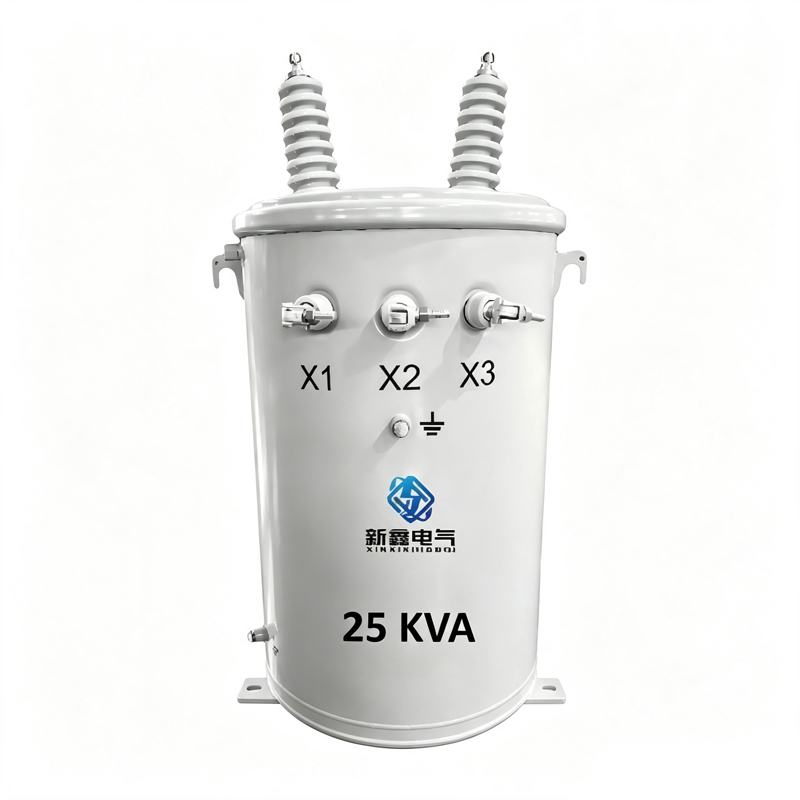

Single Phase Pole Mounted Transformer is an outdoor oil immersed distribution transformer designed for converting medium voltage overhead power lines into low voltage electricity for residential, agricultural, rural, and small commercial applications.

As a practical Oil Immersed Distribution Transformer, this product is installed on utility poles or dedicated structures, allowing power supply equipment to be placed closer to distributed loads. Compared with conventional ground-mounted transformers, the Single Phase Pole Mounted Transformer helps reduce land occupation, shorten low voltage feeder distance, and improve distribution efficiency in remote or scattered load areas.

The transformer adopts grain-oriented silicon steel core, copper or aluminum windings, fully sealed oil tank, and outdoor insulation components. It can be configured with different voltage systems, tap settings, protection accessories, and monitoring options according to utility and project requirements.

Contact Us
PREV：S(B)H Series Amorphous Alloy Oil Immersed Transformer NEXT：S-MD Series Underground Oil Immersed Transformer
  • Product Details
  • FAQ
Parameter
Specification
Product Type
Single Phase Pole Mounted Transformer
Rated Capacity
30 kVA–500 kVA
High Voltage
10/11/15/20/22/24.9/33 kV or customized
Low Voltage
120/240 V, 220/380 V, 230/400 V or customized
Frequency
50 Hz / 60 Hz
Core Material
Cold Rolled Grain-Oriented Silicon Steel
Winding Conductor
Copper or Aluminum
Cooling Method
ONAN Oil Natural Cooling
Tank Structure
Outdoor Fully Sealed Oil Immersed Structure
Protection Options
Fuse, Lightning Arrester, Pressure Relief Device, Oil Level Indicator
Monitoring Options
Temperature Monitoring, Remote Monitoring Interface
Design Standards
IEC 60076, IEEE C57.12 Series, GB/T 1094 or Customer Specifications

1. What is a Single Phase Pole Mounted Transformer used for?
A Single Phase Pole Mounted Transformer is mainly used for residential, agricultural, rural, and remote area power distribution where loads are distributed over a large area.

2. What is the difference between pole mounted transformers and ground mounted transformers?
Pole mounted transformers are installed on utility poles or structures, reducing land occupation and allowing closer installation to distributed loads.
Ground mounted transformers are generally used for larger capacity applications or locations requiring easier ground-level access.

3. Can the transformer support 120/240 V split-phase systems?
Yes.
The transformer can be designed for 120/240 V split-phase output or other low voltage configurations according to local power standards and project requirements.

4. Can 50 Hz and 60 Hz systems both be supported?
Yes.
The transformer can be designed for different frequencies, but core design, losses, temperature rise, and insulation performance must be verified according to the rated frequency.

5. Can protection accessories be installed together?
Yes.
Fuse protection, lightning arresters, pressure relief devices, and monitoring accessories can be configured according to system voltage, protection requirements, and local standards.

6. Is the transformer suitable for coastal or harsh environments?
Yes.
Customized designs are available for salt fog, humidity, dust, high temperature, high altitude, and corrosive environments. Environmental conditions should be provided before final design confirmation.

  • Product Features

Distributed Power Supply Solution
The Pole Mounted Distribution Transformer is designed for distributed power networks where electricity demand is scattered across large areas.
By installing the transformer closer to end users, it helps reduce low voltage line length, minimize voltage drop, and improve power supply reliability.

Compact Outdoor Installation
The pole-mounted structure reduces the need for ground-level transformer foundations and equipment rooms.
The compact installation design makes the Single Phase Pole Mounted Transformer suitable for rural electrification, remote areas, agricultural power supply, and locations where land availability is limited.

Reliable Oil Immersed Transformer Design
The transformer adopts oil immersed insulation and cooling technology.
As an Oil Immersed Distribution Transformer, it combines optimized core design, reliable winding structure, vacuum drying, vacuum oil filling, and sealed tank manufacturing to improve insulation performance and long-term operating reliability.
Flexible Protection and Environmental Adaptation

The transformer can be equipped with:
High voltage fuse protection
Lightning arresters
Pressure relief devices
Oil temperature and oil level indicators
Remote monitoring interfaces

For harsh environments, customized solutions are available for:
High temperature areas
Coastal salt fog environments
Dusty locations
High altitude applications
Cold climate conditions

  • Application Fields
Application Area
Typical Applications
Industries Served
Rural Power Distribution
Residential electricity supply, agricultural loads, village electrification
Utilities, rural electrification contractors
Utility Distribution Networks
Overhead distribution upgrades, decentralized power supply systems
Power companies, EPC contractors
Agricultural Applications
Irrigation systems, farms, agricultural processing equipment
Agricultural projects, rural infrastructure developers
Remote Areas
Islands, mountains, remote communities, microgrid systems
Government projects, energy developers
OEM & Distribution Partners
Localized voltage systems, customized accessories, private branding
Transformer distributors, equipment suppliers

  • OEM·ODM
Customization Module
Available Options
Electrical Design
Capacity, voltage ratio, frequency, impedance, tap setting, insulation level, loss requirements
Output Configuration
Single phase two-wire, three-wire, split-phase systems, customized low voltage requirements
Protection Accessories
Fuse, lightning arrester, pressure relief, temperature monitoring, oil level monitoring
Mechanical Design
Mounting structure, installation brackets, terminal arrangement, lifting points
Environmental Adaptation
High temperature, humidity, salt fog, dust, corrosion protection
Branding & Documents
OEM nameplate, labels, manuals, drawings, packaging marks

  • Why Choose Us

Complete Transformer Manufacturing Capability
Jiangsu Xinxin Electric provides a complete range of transformer solutions including:
Oil Immersed Transformers
Oil Immersed Distribution Transformers
Dry Type Transformers
Amorphous Alloy Transformers
Box Type Substations
This allows utilities, EPC contractors, and distributors to coordinate different power distribution requirements through one supplier.

Controlled Manufacturing Process
Production is managed through:
Technical specification review
Incoming material inspection
Core and winding manufacturing
Vacuum drying and oil filling
Tank sealing inspection
Final electrical testing
Key materials including silicon steel sheets, conductors, insulation materials, transformer oil, bushings, and protection accessories are controlled according to project requirements.

International Project Support
Jiangsu Xinxin Electric can provide:
Technical data sheets
Installation drawings
Wiring information
Nameplates
Test reports
Packing documents
Documents can be prepared according to IEC, IEEE, GB, or customer-specific project requirements.
