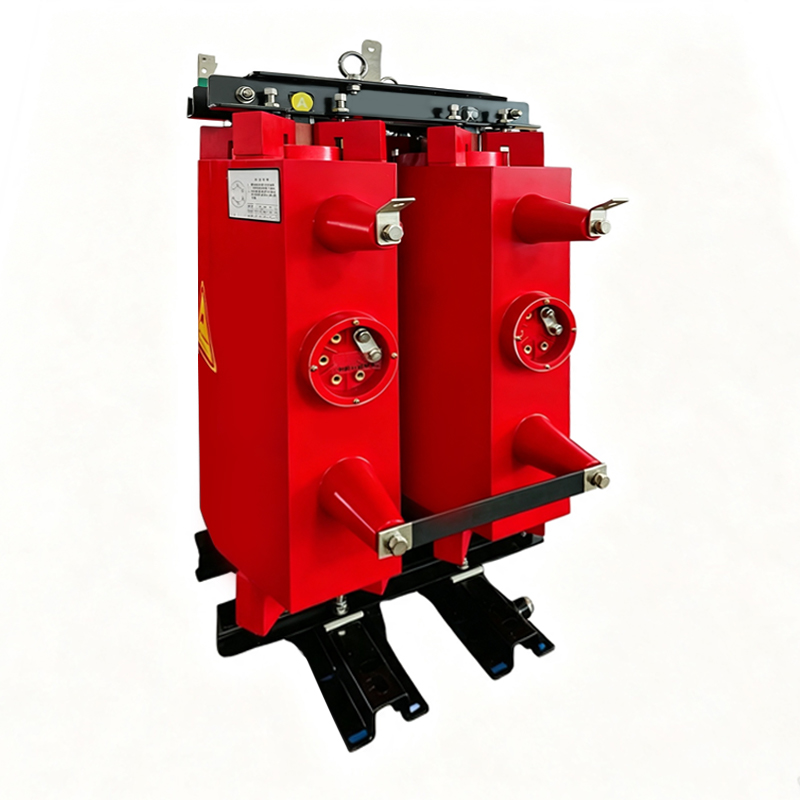

DC Series Single Phase Dry Type Transformer

DC Series Single Phase Dry Type Transformer is designed for single-phase AC systems to provide reliable voltage conversion, electrical isolation, and stable power supply for industrial equipment and electrical applications.

As part of the Dry Type Transformer product category, this transformer can be configured for isolation, step-up, step-down, control, and lighting applications. The Single Phase Dry Type Transformer is widely used in control cabinets, machinery, communication systems, medical equipment, and new energy auxiliary systems.

The transformer adopts cold rolled silicon steel sheets, copper or aluminum windings, and heat-resistant insulation materials. It supports open type or enclosure type structures and can be customized according to project requirements, including voltage, frequency, winding materials, electrostatic shielding, installation method, and environmental conditions.

Contact Us
PREV：SC(B)H Series Amorphous Alloy Dry Type Transformer NEXT：SG(B) Series Non-Encapsulated H Class Dry Type Transformer
  • Product Details
  • FAQ
Product Type
Single Phase Dry Type Transformer
Series
DC Series
Capacity Range
10KVA–500 kVA
Voltage Level
6–35 kV
Frequency
50 Hz or 60 Hz
Common Voltage
110, 120, 220, 230, 240, 380, 400, 415, 440, 480 V
Winding Conductor
Copper or Aluminum
Structure Type
Open Type or Enclosure Type
Protection Level
IP20 / IP23 / IP44
Optional Accessories
Electrostatic Shielding, Temperature Sensor, Anti-vibration Base
Environmental Design
High Altitude, High Temperature, High Humidity Customized Design
Applicable Standards
IEC, GB, ANSI or Customer Specified Standards

1. What is a Single Phase Dry Type Transformer used for?
A Single Phase Transformer is used in single-phase AC systems for voltage conversion, electrical isolation, and stable power supply.
It is commonly applied in control cabinets, machinery, communication systems, medical equipment, and new energy auxiliary systems.

2. What is the difference between a Single Phase Transformer and a three-phase transformer?
A Single Phase Transformer is designed for single-phase AC systems or single-phase loads, while three-phase transformers are used for three-phase power systems.
Selection depends on power supply type, load characteristics, capacity, and system configuration.

3. What is the difference between Dry Type Transformers and oil immersed transformers?
Dry Type Transformers do not use insulating oil, reducing maintenance requirements related to oil sampling and leakage management.
Oil immersed transformers may be selected for different operating conditions depending on project requirements.

4. How to select the right Single Phase Dry Type Transformer?
Selection depends on:
Capacity requirements
Input/output voltage
Frequency
Installation environment
Protection requirements
Winding material
Optional accessories
The final configuration should be confirmed according to application conditions and technical requirements.

5. Can you provide OEM Single Phase Dry Type Transformer solutions?
Yes.
Jiangsu Xinxin Electric provides OEM and ODM services for equipment manufacturers, distributors, EPC contractors, and system integrators.
Customization can include electrical parameters, mechanical structures, accessories, branding, and technical documents.

6. What documents can be provided for export projects?
Technical documents may include:
Technical data sheets
Drawings
Wiring diagrams
Nameplates
Test records
Operation manuals
Packaging documents
Documents can be prepared according to project requirements.

  • Product Features

Optimized Core Design
The Single Phase Transformer uses cold rolled silicon steel sheets with optimized magnetic circuit design to improve operating stability and reduce vibration.
The core structure is designed according to capacity, voltage level, and application requirements to achieve reliable performance during long-term operation.

Winding and Insulation System
The Single Phase Dry Type Transformer supports copper or aluminum winding configurations according to project requirements.
Heat-resistant insulation materials combined with vacuum varnishing technology help improve moisture resistance, insulation performance, and operational reliability.
The winding and insulation system can be designed according to voltage, capacity, temperature rise, and installation conditions.

Dry Type Structure and Easy Maintenance
Compared with oil immersed transformers, Dry Type Transformers do not use insulating oil, reducing maintenance requirements related to oil sampling and leakage management.
The dry type structure is suitable for indoor installations, electrical equipment integration, and applications requiring clean operation and simplified maintenance.

Electrical Isolation and Shielding Options
The transformer provides electrical isolation to help reduce the influence of common-mode interference and grounding loops on sensitive equipment.
Optional electrostatic shielding and grounding solutions can be evaluated for medical equipment, communication systems, laboratories, and precision control applications.

Flexible Configuration
The DC Series Single Phase Dry Type Transformer can be configured according to different project requirements, including:
Capacity
Input and output voltage
Frequency
Winding material
Protection level
Enclosure structure
Electrostatic shielding
Temperature sensors
Installation method

  • Application Fields
Application Area
Typical Applications
Industries Served
Industrial Automation
PLC control cabinets, CNC machines, robots, automated production lines, industrial control systems
Automation equipment manufacturers, machinery manufacturers, industrial system integrators
Electrical Panels & Control Equipment
Control cabinets, switchgear assemblies, customized electrical equipment, integrated power systems
Electrical panel manufacturers, switchgear manufacturers, OEM equipment suppliers
Medical, Laboratory & Communication Systems
Medical instruments, laboratory equipment, communication systems, UPS, electronic equipment
Medical equipment suppliers, communication equipment suppliers, electronic system integrators
Commercial Buildings & New Energy Systems
Commercial buildings, auxiliary power systems, photovoltaic systems, energy storage systems, charging equipment
EPC contractors, electrical contractors, renewable energy integrators

  • OEM·ODM
Category
Customization Options
Electrical Design
Capacity, voltage, frequency, voltage ratio, connection method, insulation level, shielding, temperature rise, loss requirements
Mechanical Design
Open type / enclosure type structure, dimensions, mounting holes, terminal direction, cable entry method
Materials & Accessories
Copper / aluminum winding, insulation materials, electrostatic shielding, temperature sensors, grounding terminals
Branding & Documents
OEM brand, model number, nameplate, labels, manuals, drawings, packaging marks
Quality & Acceptance
Inspection test plans, routine test records, customer witness requirements, agreed technical documents

  • Why Choose Us

Customized Transformer Solutions
Jiangsu Xinxin Electric provides customized transformer solutions covering Dry Type Transformers, including Cast Resin Dry Type Transformers and other project-specific transformer products.
The company supports electrical design, mechanical structures, accessories selection, technical documentation, and project coordination according to customer requirements.

Manufacturing and Quality Control
Production follows a controlled process covering:
Technical review
Material inspection
Winding and insulation processing
Assembly
Routine inspection and testing
Key materials, including silicon steel sheets, copper/aluminum conductors, insulation materials, and accessories, are controlled according to approved project requirements.

Technical Documentation and Export Support
Jiangsu Xinxin Electric can provide:
Technical data sheets
Assembly drawings
Wiring diagrams
Nameplates
Test records
Operation manuals
Packaging documents
The company can coordinate requirements related to voltage systems, frequency, documentation, packaging, and transportation for international projects.
