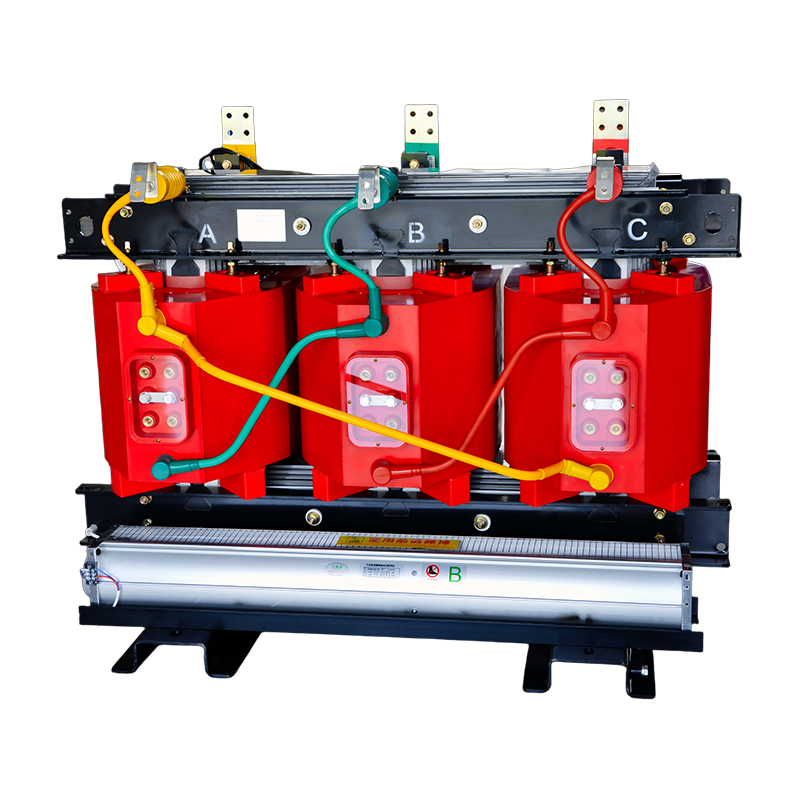

SC(B) Series Epoxy Resin Cast Dry-Type Transformer

SC(B) Series Epoxy Resin Cast Dry-Type Transformer is designed for safe, reliable, and low-maintenance indoor power distribution applications. It is suitable for projects requiring high fire safety, environmental protection, and stable electrical performance.

The transformer adopts vacuum epoxy resin casting technology for high and low voltage windings, forming a solid insulation structure with high mechanical strength and resistance to moisture, dust, and pollution.

As a type of Dry Type Transformer, the SC(B) Series does not use insulating oil, eliminating oil leakage risks and reducing maintenance requirements compared with oil immersed transformers. This Cast Resin Dry Type Transformer is widely used in indoor substations, commercial buildings, industrial facilities, infrastructure projects, and other applications where safety and reliability are critical.

The product can be customized according to project requirements, including capacity, voltage level, winding material, insulation class, cooling method, protection enclosure, monitoring system, and electrical parameters.

Contact Us
PREV：SG(B) Series Non-Encapsulated H Class Dry Type Transformer NEXT：No next article
  • Product Details
  • FAQ
Parameter Standard
 Optional Range
Product Type
SC(B) Series Epoxy Resin Cast Dry‑Type Transformer
Rated Capacity
10KVA‑6300KVA
Voltage Level
6KV‑35KV
Winding Conductor
Copper or Aluminum
Insulation Class
F Class or H Class
Partial Discharge
≤5 pC under agreed test conditions
Cooling Method
AN; AF with fan control system optional
Protection Enclosure
IP20 or IP23
Temperature Monitoring
Digital temperature controller, PT100 sensor, alarm/trip function, automatic fan control
Efficiency Series
SCB10 / SCB11 / SCB12 / SCB13 / SCB14 / SCB18
Design Standard
IEC, GB, or customer/project technical specifications

1. What is the difference between SC(B) Series Epoxy Resin Cast Dry-Type Transformer and oil immersed transformers?
The SC(B) Series Epoxy Resin Cast Dry-Type Transformer uses solid epoxy resin insulation and does not contain insulating oil.
This design eliminates oil leakage risks and reduces maintenance related to oil sampling, filtration, and replacement.
Oil immersed transformers may still be preferred for certain outdoor, grid, or higher-capacity applications depending on project requirements.

2. Where can SC(B) Series Epoxy Resin Cast Dry-Type Transformers be used?
The product is suitable for indoor commercial, industrial, and infrastructure applications.
For environments with high humidity, dust, pollution, high temperature, high altitude, salt fog, or outdoor exposure, enclosure, cooling, and protection requirements should be confirmed before selection.

3. What does partial discharge ≤5 pC mean?
Partial discharge refers to localized electrical discharge occurring inside or around insulation materials.
A low partial discharge value under agreed testing conditions is an important indicator for evaluating insulation quality and manufacturing consistency.

4. Can AF forced air cooling permanently increase transformer capacity?
AF forced air cooling improves heat dissipation capability.
However, allowable load level and operating duration depend on transformer design, environmental conditions, and temperature limits.

5. What maintenance is required for a Cast Resin Dry Type Transformer?
Routine maintenance mainly includes:
Cleaning ventilation passages and winding surfaces
Checking electrical connections and grounding
Inspecting fans and temperature sensors
Reviewing temperature records
Performing electrical inspections according to site requirements
No oil sampling or oil replacement is required.

6. How are high temperature and high altitude projects handled?
High altitude and temperature conditions are important design inputs.
Engineering evaluation may require adjustments to insulation distance, cooling capacity, temperature rise limits, and enclosure ventilation according to actual installation conditions.

  • Product Features

Reliable Epoxy Resin Cast Insulation Structure
The Epoxy Resin Cast Transformer uses vacuum epoxy resin casting technology to form a rigid insulation system for high and low voltage windings.
The casting process reduces internal air gaps and improves resistance to moisture, dust, and pollution. The integrated cast resin winding structure also provides strong mechanical support under short-circuit conditions.
Partial discharge performance of ≤5 pC under agreed testing conditions provides a measurable indicator for insulation quality evaluation.

Oil-Free Design with Lower Maintenance Requirements
Unlike oil immersed transformers, the Dry Type Transformer does not contain insulating oil, eliminating oil sampling, oil filtration, and leakage management.
The oil-free structure reduces maintenance requirements and is suitable for hospitals, data centers, high-rise buildings, transportation facilities, and other projects where maintenance access is limited.

Flexible Cooling and Temperature Monitoring
The SC(B) Series supports AN air natural cooling under normal operating conditions.
For applications requiring higher heat dissipation capability, AF forced air cooling with temperature-controlled fans can be configured.

Optional monitoring solutions include:
Digital temperature controller
PT100 temperature sensor
Alarm and trip functions
Automatic fan control system
These configurations improve operational monitoring and system reliability.
The transformer adopts optimized magnetic circuit design and high-quality silicon steel sheets to reduce no-load loss and load loss.
Different efficiency series including SCB10, SCB11, SCB12, SCB13, SCB14, and SCB18 are available according to project requirements.
Flexible Configuration for Different Projects

The Cast Resin Dry Type Transformer can be customized according to application requirements, including:
Copper or aluminum windings
F Class or H Class insulation
AN or AF cooling
IP20 or IP23 protection enclosure
Temperature monitoring systems
Customized electrical parameters

  • Application Fields
Application Area
Typical Applications
Industries Served
Commercial Buildings & Public Facilities
Hospitals, schools, high-rise buildings, hotels, data centers, indoor substations
Building contractors, electrical contractors, project developers
Industrial Facilities
Manufacturing plants, industrial parks, petrochemical facilities, factory power systems
Industrial companies, EPC contractors, electrical system integrators
Infrastructure Projects
Airports, rail transit systems, transportation facilities, municipal projects
Infrastructure contractors, engineering companies
Renewable Energy Systems
Solar power projects, wind power projects, auxiliary power supply systems
Renewable energy developers, EPC companies
Electrical Equipment Integration
Switchgear assemblies, box substations, integrated power distribution systems
Switchgear manufacturers, OEM suppliers, system integrators
  • OEM·ODM
Jiangsu Xinxin Electric provides OEM, ODM, and project customization services for distributors, switchgear manufacturers, EPC contractors, and equipment integrators.
Customized Cast Resin Dry Type Transformer solutions are developed according to approved technical specifications, drawings, and project requirements.
Customization Module Available Options Electrical Design Capacity, voltage ratio, frequency, vector group, impedance, tap range, loss level, temperature rise
Mechanical Design Dimensions, terminal direction, cable entry, busbar connection, wheels, lifting points, anti-vibration base
Materials & Accessories Copper/aluminum windings, insulation class, sensors, temperature controller, fans, alarm/trip contacts
Market Adaptation OEM brand, nameplate, language, labels, manuals, drawing templates, packaging marks
System Integration Medium/low voltage switchgear, box substations, busbars, protection and monitoring systems
Documentation Support Technical submission documents, assembly drawings, electrical drawings, inspection records
  • Why Choose Us

Complete Transformer Product Capability
Jiangsu Xinxin Electric provides transformer solutions covering:
Cast Resin Dry Type Transformers
Dry Type Transformers
Oil Immersed Transformers
Box substations
Related power distribution equipment
This allows EPC contractors, OEM customers, distributors, and system integrators to coordinate multiple equipment requirements through one supplier.

Manufacturing & Quality Control
Production is managed through controlled manufacturing and inspection processes, including:
Technical review
Incoming material inspection
Winding manufacturing
Vacuum casting and curing process control
Assembly inspection
Electrical routine testing
Final document approval
Key materials including conductors, silicon steel sheets, epoxy resin insulation materials, and purchased components are inspected according to technical requirements.

Quality control focuses on:
Winding dimensions and connections
Casting process parameters
Curing records
Assembly accuracy
Electrical performance verification
Final product inspection
Engineering Support & International Projects
Jiangsu Xinxin Electric supports international projects with technical documents prepared according to IEC, GB, or customer-specific requirements.

Available documents include:
Technical data sheets
Assembly drawings
Wiring diagrams
Nameplates
Test reports
Packing documents
Project submission files
The company can coordinate requirements related to voltage systems, installation conditions, documentation, packaging, and delivery.
