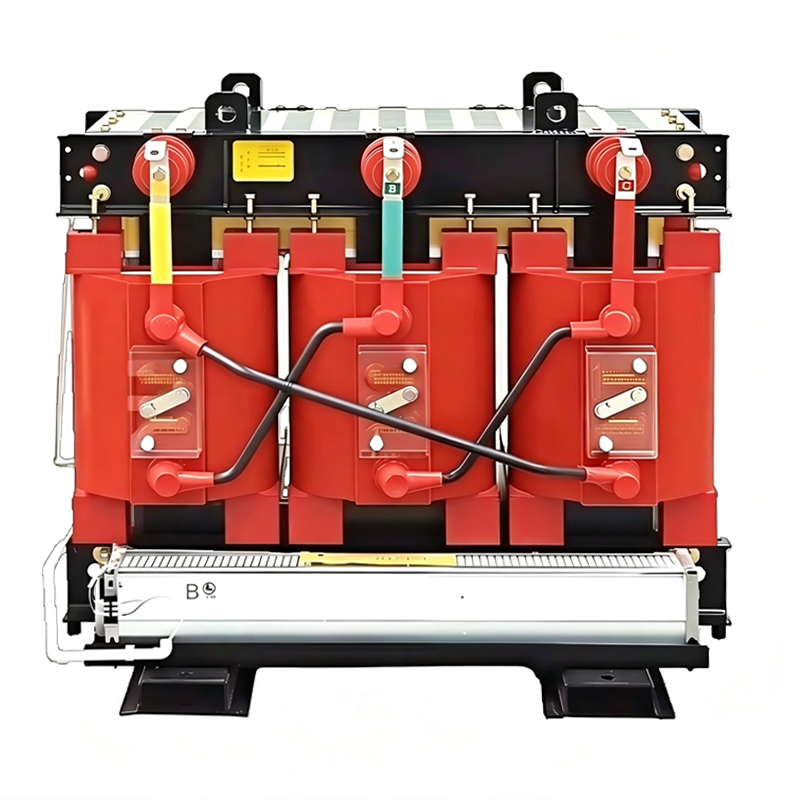

SC(B)H Series Amorphous Alloy Dry Type Transformer

solution for indoor power distribution applications.

Compared with conventional silicon steel core dry type transformers, the amorphous alloy core can reduce no-load loss by approximately 60%–80%, making this Amorphous Alloy Transformer suitable for projects requiring continuous energization, lower operating energy consumption, and improved lifecycle efficiency.

The high and low voltage windings are formed through vacuum epoxy resin casting technology, creating a solid insulation structure with improved resistance to moisture, dust, pollution, and short-circuit mechanical stress.

As an oil-free Dry Type Transformer solution, the SC(B)H Series eliminates the need for oil sampling, oil filtration, and oil replacement, making it suitable for buildings, industrial facilities, data centers, transportation facilities, and other applications with strict safety and maintenance requirements.

Contact Us
PREV：No previous article NEXT：DC Series Single Phase Dry Type Transformer
  • Product Details
  • FAQ
Parameter
Standard / Optional Range
Product Type
SC(B)H Series Amorphous Alloy Dry Type Transformer
Rated Capacity
30KVA–6300 kVA
Voltage Level
6KV–35 kV
Winding Conductor
Copper or Aluminum
Insulation Class
F Class or H Class
Cooling Method
AN; AF with fan control system optional
Temperature Monitoring
Digital temperature controller, PT100 sensor, alarm/trip function, automatic fan control
Design Standard
IEC, GB, or agreed customer/project specifications
Customized Parameters
Capacity, primary/secondary voltage, frequency, vector group, impedance, tap, and loss according to requirements

1. What is the difference between SC(B)H and conventional SC(B) dry type transformers?
The main difference is the core material.
SC(B)H uses an amorphous alloy core, while conventional SC(B) dry type transformers generally use silicon steel cores.
The amorphous alloy core can reduce no-load loss by approximately 60%–80% compared with conventional silicon steel core products.

2. Why can amorphous alloy cores reduce energy consumption?
Amorphous alloy materials have high magnetic permeability, low coercivity, and lower hysteresis loss characteristics.
These properties help reduce core losses during long-term excitation operation.

3. What projects are suitable for SC(B)H Series Amorphous Alloy Dry Type Transformer?
The product is suitable for indoor commercial, industrial, infrastructure, renewable energy, and power distribution applications.
Projects with continuous energization, lower average load rates, energy-efficiency requirements, and strict maintenance conditions can better benefit from the low no-load loss characteristics.

4. Does the transformer require regular oil maintenance?
No.
The Amorphous Alloy Dry Type Transformer does not contain insulating oil and does not require oil sampling, oil filtration, or oil replacement.
Routine maintenance mainly includes cleaning, connection inspection, ventilation checking, temperature monitoring, and electrical inspection.

5. Can AF forced air cooling permanently increase transformer capacity?
AF forced air cooling improves heat dissipation capability, but allowable load levels and operating duration depend on product design, environmental conditions, and temperature limits.

6. Is this product suitable for data centers and renewable energy projects?
Yes.
Selection should consider continuous load operation, harmonic conditions, efficiency targets, ventilation conditions, protection requirements, and system integration requirements.

  • Product Features

Low No-Load Loss Energy-Saving Performance
The Amorphous Alloy Dry Type Transformer adopts amorphous alloy core materials with low hysteresis loss characteristics.
Compared with conventional silicon steel core dry type transformers, the no-load loss can be reduced by approximately 60%–80%, providing energy-saving advantages for applications with long operating hours, continuous energization, or relatively low average load rates.
This makes the product suitable for projects focused on reducing long-term energy consumption and improving total lifecycle efficiency.

Vacuum Cast Epoxy Resin Insulation Structure
The high and low voltage windings adopt vacuum epoxy resin casting technology to form a rigid insulation structure.
This design helps reduce internal air gaps, improve insulation reliability, and enhance resistance to moisture, dust, pollution, and mechanical stress caused by short-circuit conditions.
The solid cast resin structure also improves environmental adaptability for indoor power distribution applications.

Oil-Free Design with Lower Maintenance Requirements
Unlike oil-filled transformers, the Dry Type Transformer does not use insulating oil, eliminating oil sampling, oil filtration, and leakage management requirements.
The oil-free structure simplifies maintenance procedures and is suitable for hospitals, data centers, commercial buildings, transportation facilities, and other projects where maintenance windows are limited.

Flexible Cooling and Temperature Monitoring
The transformer supports AN air natural cooling under normal operating conditions.
For applications requiring higher heat dissipation capability, an AF forced air cooling system with temperature-controlled fans can be configured.
Optional temperature monitoring systems include:

PT100 sensors
Digital temperature controllers
Alarm functions
Trip functions
These configurations help improve operational monitoring and equipment management.

Flexible Project Configuration
The SC(B)H Series Amorphous Alloy Transformer can be configured according to different project requirements, including:
Copper or aluminum windings
F Class or H Class insulation
AN or AF cooling
IP20 or IP23 protection enclosure
Temperature monitoring systems
Customized electrical parameters

  • Application Fields

The SC(B)H Series Amorphous Alloy Dry Type Transformer is widely used in indoor power distribution systems, commercial buildings, industrial facilities, renewable energy projects, and infrastructure applications requiring safe operation, low energy consumption, and reliable power supply.
Application Area Typical Applications Industries Served
Commercial Buildings & Public Facilities Hospitals, schools, hotels, high-rise buildings, data centers, and indoor power distribution systems requiring high safety and low maintenance Building contractors, electrical contractors, property developers, public facility operators
Industrial Facilities Manufacturing plants, industrial parks, petrochemical facilities, and industrial power supply systems requiring stable operation Industrial companies, EPC contractors, electrical system integrators
Power Distribution & Infrastructure Indoor substations, transportation facilities, airports, municipal projects, and distribution network upgrades Utilities, infrastructure contractors, switchgear manufacturers
Renewable Energy Projects Solar power systems, wind power projects, energy storage systems, and auxiliary power supply applications Renewable energy developers, EPC companies, energy system integrators

  • OEM·ODM
Customization Module
Available Options
Electrical Design
Capacity, primary/secondary voltage, frequency, vector group, impedance, tap range, loss level, temperature rise
Mechanical Design
Dimensions, terminal direction, cable entry direction, busbar connection, wheels, lifting points, anti-vibration base
Materials & Accessories
Copper/aluminum windings, insulation class, sensors, temperature controller, fans, alarm/trip contacts, enclosure surface treatment
Market Adaptation
OEM brand, nameplate, language, labels, manuals, drawing templates, packaging marks
System Integration
Interface coordination with medium/low voltage switchgear, box substations, busbars, protection, and monitoring systems
Documentation Support
Technical submission documents, assembly drawings, electrical drawings, guaranteed data sheets, test records, compliance documents

  • Why Choose Us

Complete Transformer Product Capability
Jiangsu Xinxin Electric provides transformer solutions including:
Amorphous Alloy Dry Type Transformers
Dry Type Transformers
Oil Immersed Transformers
Box substations
Related power distribution equipment
The company supports EPC contractors, OEM customers, distributors, and system integrators with coordinated product selection and project communication.

Manufacturing & Quality Control
Production is managed through controlled manufacturing and inspection processes, including:
Technical review
Incoming material inspection
Amorphous alloy core processing
Winding manufacturing
Vacuum epoxy resin casting
Assembly inspection
Electrical routine testing
Final document approval
Key materials, including amorphous alloy strips, copper/aluminum conductors, epoxy resin insulation materials, and purchased components, are inspected according to approved technical requirements.

Engineering Support & Export Service
Jiangsu Xinxin Electric supports international projects with technical documents including:
Technical data sheets
Drawings
Nameplates
Test reports
Packing documents
Project submission files
Documents can be prepared according to IEC, GB, or customer-specific project requirements.
