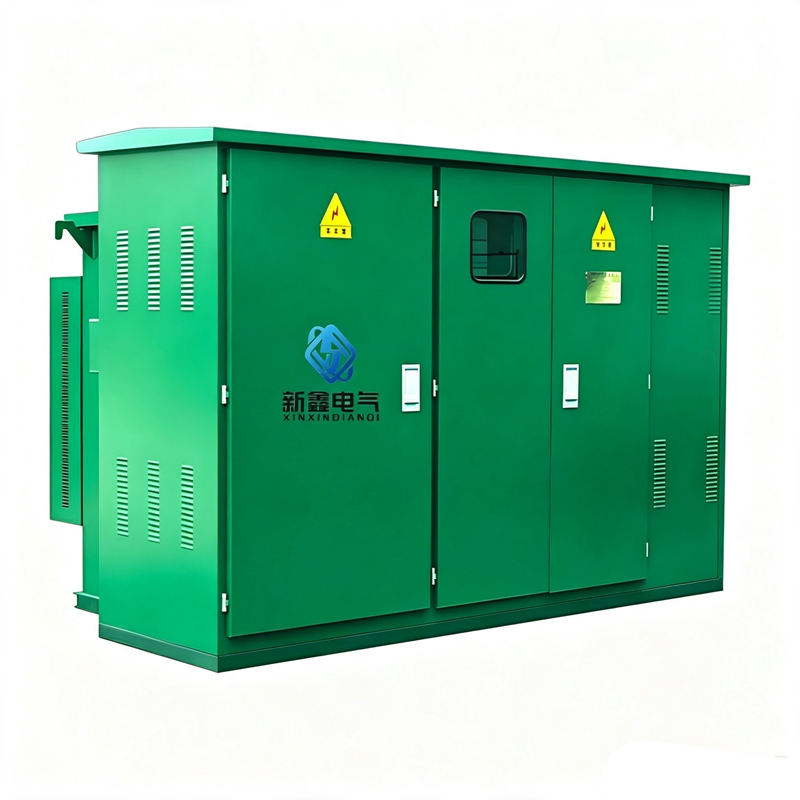

American-type Pad-Mounted Prefabricated Substation

American-type Pad-Mounted Prefabricated Substation is a compact outdoor power distribution solution integrating an oil immersed transformer, high voltage switching protection, low voltage distribution, and optional monitoring systems into one prefabricated unit.
As a practical solution within Substations, this Pad-Mounted Substation is widely used in urban distribution networks, industrial facilities, renewable energy projects, commercial buildings, and infrastructure applications requiring compact layout, reliable power supply, and simplified installation.
The system typically uses a fully sealed oil immersed transformer as the core component, combined with high voltage cable interfaces, load switches, fuse protection, low voltage switchgear, and optional communication functions.
This American-type Substation can be customized according to project requirements, including transformer capacity, voltage level, protection configuration, low voltage distribution, monitoring system, enclosure design, and environmental adaptation.

Contact Us
PREV：European-type Prefabricated Substation NEXT：No next article
  • Product Details
  • FAQ
Parameter
Specification
Product Type
American-type Pad-Mounted Prefabricated Substation
Application Category
Substations
Rated Capacity
160 kVA–3300 kVA
High Voltage Side
10/11/13.8/15/20/22/24.9/33 kV optional
Low Voltage Side
120/240, 220/380, 230/400, 277/480, 400/415 V optional
Transformer Type
Fully sealed oil immersed transformer
Core Material
Silicon steel core or amorphous alloy core optional
Winding Material
Copper or aluminum
High Voltage Protection
Load switch, fuse protection, lightning arrester interface
Low Voltage Unit
Main breaker, feeders, metering, compensation optional
Monitoring Options
RTU, SCADA interface, temperature monitoring, remote communication
Environmental Design
High temperature, humidity, desert, coastal, high altitude, anti-condensation
Standards
IEC, IEEE/ANSI, GB/T or customer specifications

1. What is an American-type Pad-Mounted Prefabricated Substation?
It is a compact outdoor Pad-Mounted Substation that integrates an oil immersed transformer, high voltage protection, and low voltage distribution equipment into one prefabricated unit.
It is commonly used for urban distribution, commercial buildings, industrial facilities, and renewable energy projects.

2. What is the difference between American-type and European-type substations?
American-type Substations usually integrate transformer, switching, and protection functions into a compact outdoor enclosure.
European-type substations generally use separate functional compartments for high voltage switchgear, transformer, and low voltage distribution.
Selection depends on local standards, installation requirements, and project design.

3. Can the substation support 60 Hz and North American voltage systems?
Yes.
The system can be customized for 60 Hz and voltage configurations such as 120/240 V and 277/480 V according to project requirements.

4. Can it be used for solar, wind, and energy storage projects?
Yes.
The Prefabricated Substation can be applied for renewable energy distribution and auxiliary power systems after confirming load characteristics, protection requirements, communication interfaces, and grid connection conditions.

5. Can it operate in coastal or desert environments?
Yes.
Customized solutions can include corrosion protection, enhanced sealing, cooling optimization, dust protection, and anti-condensation design.

  • Product Features

Integrated Power Distribution Design
The Pad-Mounted Substation combines transformer, high voltage protection, and low voltage distribution functions into a compact outdoor unit.
Factory integration reduces onsite installation work and simplifies coordination between electrical equipment, civil foundation, and cable connections.
This integrated design makes the Prefabricated Substation suitable for projects requiring faster installation and simplified system coordination.

Compact Structure and Space Saving
The American-type Substation adopts a compact ground-mounted design, reducing installation space compared with traditional substations.
It is suitable for residential areas, commercial projects, industrial parks, renewable energy plants, and other applications requiring efficient land utilization.

Reliable Transformer and Protection Coordination
The transformer, load switch, fuse protection, and lightning protection system are designed according to:
Transformer rated capacity
Short circuit level
Load characteristics
Protection coordination requirements
This ensures reliable operation under different distribution conditions.

Outdoor Environmental Adaptability
The enclosure and internal components of the Prefabricated Substation can be customized for:
High temperature environments
Coastal salt fog areas
Desert conditions
High humidity locations
Dusty industrial environments
High altitude installations
Solutions may include corrosion protection, sealing improvement, ventilation optimization, and anti-condensation design.

  • Application Fields
Application
Typical Uses
Customers
Utility Distribution Networks
Urban power distribution, grid expansion, feeder systems
Utilities, EPC contractors
Residential & Commercial Projects
Communities, shopping centers, office buildings
Developers, electrical contractors
Industrial Facilities
Factories, mining sites, industrial parks
Industrial companies, system integrators
Renewable Energy Projects
Solar farms, wind power plants, energy storage systems
Renewable energy EPC companies
Infrastructure Projects
Airports, ports, rail transit, municipal facilities
Infrastructure contractors
OEM & Distribution Business
Standardized products and customized solutions
Distributors, equipment manufacturers

  • OEM·ODM
Customization Module
Available Options
Electrical Design
Capacity, voltage level, frequency, vector group, impedance, tap range, losses
High Voltage System
Ring main or radial connection, load switch, fuse, lightning arrester
Transformer Configuration
Silicon steel or amorphous core, copper/aluminum winding, transformer accessories
Low Voltage System
Main breaker, feeders, metering, compensation, auxiliary power
Monitoring System
RTU, SCADA, remote communication, online monitoring
Mechanical Design
Enclosure size, cable entry, foundation, lifting points, ventilation
Environmental Adaptation
High temperature, corrosion protection, humidity, dust, altitude
Branding & Documents
OEM nameplate, labels, drawings, manuals, packaging documents

  • Why Choose Us

Complete Substation and Transformer Capability
Jiangsu Xinxin Electric provides integrated power distribution solutions including:
Oil Immersed Transformers
Dry Type Transformers
Amorphous Alloy Transformers
Box Type Substations
American-type Pad-Mounted Prefabricated Substations
This enables EPC contractors and system integrators to coordinate transformer, substation, and distribution equipment requirements through one supplier.

Controlled Manufacturing Process
Production is managed through:
Technical specification review
Incoming material inspection
Transformer manufacturing
Switchgear assembly
Protection configuration verification
Electrical testing
Final inspection
Key components including transformers, switches, cables, protection devices, and enclosure materials are controlled according to project requirements.

International Project Support
Jiangsu Xinxin Electric can provide:
Technical data sheets
Single line diagrams
Assembly drawings
Wiring diagrams
Test reports
Operation manuals
Packing documents
Documentation can be prepared according to IEC, IEEE/ANSI, GB/T, or customer project requirements.

Quality Control Process
Contract & Technical Review
Confirm voltage, capacity, protection scheme, installation environment, standards, interfaces, and acceptance requirements.
Incoming Material Inspection
Check transformer materials, switches, protection devices, enclosure materials, and accessories.
Manufacturing Inspection
Control transformer assembly, oil sealing, enclosure fabrication, wiring, grounding, and protection installation.
System Verification
Verify switch operation, protection coordination, auxiliary circuits, communication functions, and monitoring interfaces.
Final Testing & Delivery Approval
Complete electrical tests, functional checks, documentation review, labeling, packaging, and shipment approval.
