European-type Prefabricated Substation

Home / Products / Substations / European-type Prefabricated Substation

  • European-type Prefabricated Substation

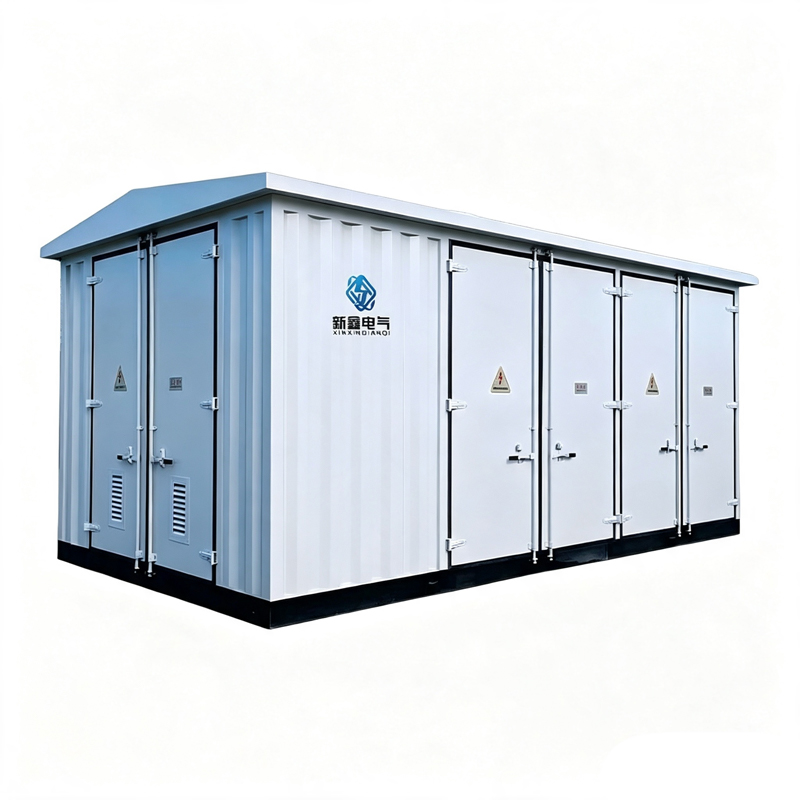

European-type Prefabricated Substation

European-type Prefabricated Substation is an integrated power distribution solution that combines high voltage switchgear, distribution transformer, low voltage switchgear, protection, control, and monitoring systems inside a factory-assembled enclosure.

The Prefabricated Substation typically adopts a three-compartment structure consisting of a high voltage room, transformer room, and low voltage room. This design provides independent functional separation for medium voltage switching, voltage transformation, and low voltage distribution, improving safety, maintenance convenience, and system integration.

As a complete Substation solution, it can be configured with oil immersed transformers, dry type transformers, or amorphous alloy transformers, together with RMU, vacuum circuit breakers, protection relays, power compensation, PLC, and SCADA communication interfaces according to project requirements.

Contact Us
PREV：Prefabricated Substation for Wind Power and Photovoltaic (PV) Applications NEXT：American-type Pad-Mounted Prefabricated Substation
  • Product Details
  • FAQ
Parameter
Specification
Product Type
European-type Prefabricated Substation
Rated Capacity
200 kVA–6300 kVA
High Voltage Side
6/10/11/20/24/35 kV or customized
Low Voltage Side
0.4/0.415/0.48 kV or customized
Transformer Options
Oil Immersed Transformer, Dry Type Transformer, Amorphous Alloy Transformer
High Voltage Equipment
RMU, Vacuum Circuit Breaker, Load Switch, Earthing Switch, Lightning Arrester, Protection Relay
Low Voltage Equipment
Incoming Feeder, Outgoing Feeder, Bus Coupler, Metering, Capacitor Compensation
Monitoring System
PLC, SCADA, Temperature Monitoring, Fault Alarm, Remote Communication
Enclosure System
Ventilation, Lighting, Grounding, Anti-condensation, Dust Protection
Environmental Adaptation
High Temperature, High Altitude, Coastal Corrosion, Sand and Dust Protection
Design Standards
IEC, GB/T, ANSI/IEEE or Customer Specifications

1. What is a European-type Prefabricated Substation?
A European-type Prefabricated Substation is a factory-assembled power distribution unit integrating high voltage switchgear, transformer, low voltage equipment, protection, and monitoring systems inside a prefabricated enclosure.
It is widely used for industrial, commercial, infrastructure, and renewable energy power distribution.

2. What is the difference between European-type and American-type prefabricated substations?
European-type substations usually adopt separate high voltage, transformer, and low voltage compartments with flexible equipment integration.
American-type solutions often feature more compact transformer-switchgear integration and different protection and cable connection arrangements.
Selection depends on regional standards, installation requirements, and project design.

3. Can different transformers be installed in the substation?
Yes.
The Prefabricated Substation can be configured with:
Oil immersed transformers
Dry type transformers
Amorphous alloy transformers
The selection depends on safety requirements, efficiency targets, maintenance conditions, and installation environment.

4. Can the substation be used in harsh environments?
Yes.
Customized designs are available for:
High temperature areas
High altitude locations
Coastal salt fog environments
Dusty and desert regions
High humidity conditions
Environmental parameters should be confirmed during engineering review.

5. Can SCADA and remote monitoring be integrated?
Yes.
PLC, SCADA, temperature monitoring, fault alarms, communication interfaces, and remote monitoring functions can be configured according to project requirements.

  • Product Features

Integrated Power Distribution System
The European-type Prefabricated Substation integrates transformer, medium voltage switchgear, low voltage distribution, protection, and monitoring systems into one complete solution.
The integrated design reduces interface coordination between multiple suppliers and simplifies project installation, commissioning, and maintenance.

Three-Compartment Structure Design
The Prefabricated Substation adopts independent high voltage, transformer, and low voltage compartments.
This structure improves:
Electrical safety separation
Maintenance accessibility
Equipment protection
System expansion flexibility
Mechanical and electrical interlocking systems can be configured according to project safety requirements.

Factory Assembly and System Testing
Major components of the Substation are assembled and inspected before delivery.
Factory verification can include:
Internal wiring inspection
Protection logic checking
Interlocking verification
Auxiliary circuit testing
Communication function testing
This helps reduce onsite installation work and improve project delivery efficiency.

Flexible Equipment and Environmental Configuration
The European-type Prefabricated Substation can be customized with different transformer technologies and environmental solutions.
Optional configurations include:
Oil immersed transformer
Dry type transformer
Amorphous alloy transformer
Forced ventilation system
Temperature monitoring
Anti-condensation heating
Dust filtration
Corrosion protection coating

  • Application Fields
Application Area
Typical Applications
Industries Served
Industrial Power Distribution
Factory power supply, industrial parks, production facilities
Industrial companies, EPC contractors
Urban Infrastructure
Commercial buildings, municipal projects, public facilities
Government projects, engineering companies
Renewable Energy Projects
Solar plants, wind power facilities, energy storage systems
Renewable energy developers, system integrators
Transportation Facilities
Airports, rail transit, ports, infrastructure networks
Infrastructure contractors
Commercial & Residential Projects
Residential communities, shopping centers, business parks
Property developers, electrical contractors
OEM & System Integration
Customized configurations, local standards, branded solutions
Distributors, equipment manufacturers

  • OEM·ODM
Customization Module
Available Options
Electrical Design
Capacity, voltage level, frequency, impedance, vector group, protection settings
Transformer Configuration
Oil immersed, dry type, amorphous alloy transformer selection
High Voltage System
RMU, vacuum breaker, load switch, protection relay, metering
Low Voltage System
Feeder arrangement, compensation system, control cabinet, monitoring
Communication System
PLC, SCADA, communication protocol, remote monitoring
Mechanical Design
Enclosure size, cable entry, ventilation, lifting structure, foundation interface
Environmental Adaptation
High temperature, high altitude, corrosion, dust, humidity protection
Branding & Documents
OEM nameplate, labels, manuals, drawings, packaging marks

  • Why Choose Us

Complete Power Distribution Capability
Jiangsu Xinxin Electric provides integrated solutions including:
European-type Prefabricated Substation
Box Type Substation
Oil Immersed Transformers
Dry Type Transformers
Amorphous Alloy Transformers
This enables EPC contractors and system integrators to coordinate transformer, switchgear, and auxiliary system requirements through one supplier.

Controlled Manufacturing Process
Production includes:
Technical specification review
Transformer and switchgear inspection
Enclosure manufacturing
Primary and secondary wiring
Protection and communication testing
Final system verification
All key components are inspected according to approved technical requirements.

International Project Support
Technical documents can be provided according to IEC, GB, ANSI/IEEE, or customer requirements, including:
Technical data sheets
Single line diagrams
Assembly drawings
Wiring diagrams
Test reports
Operation manuals
Packing documents
