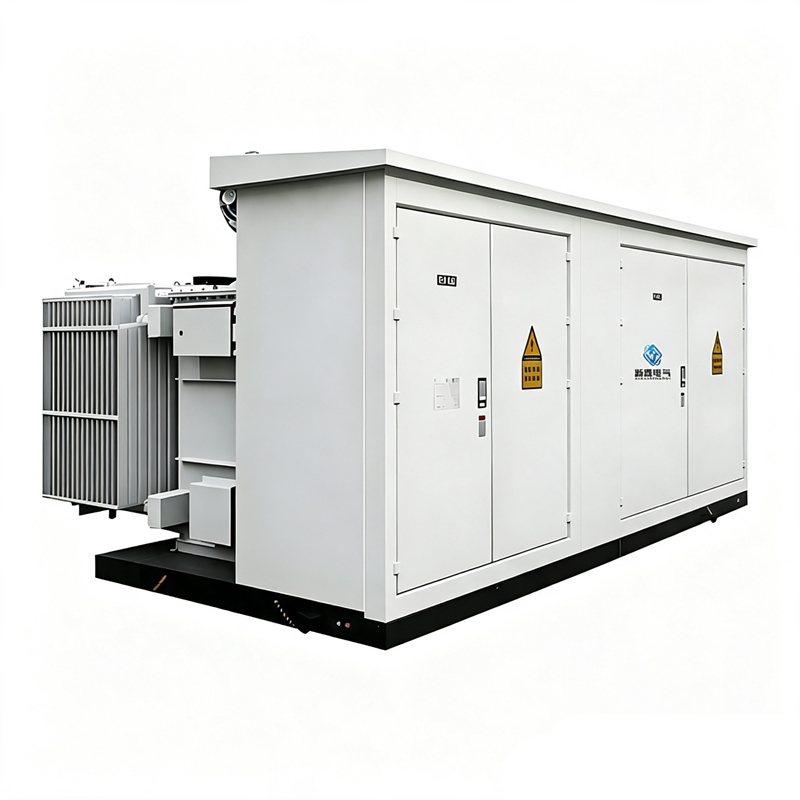

New Energy Hua-type / Chinese-style Compact Substation

New Energy Hua-type Compact Substation is an integrated power conversion and distribution solution developed for renewable energy projects including solar power plants, wind farms, energy storage systems, EV charging infrastructure, and renewable microgrids.

As a specialized New Energy Compact Substation, the system integrates step-up transformer, medium voltage switchgear, low voltage distribution, protection and control devices, communication systems, and auxiliary equipment into a factory-preassembled unit.

Compared with conventional substations, this Renewable Energy Compact Substation helps reduce installation complexity, coordinate multiple electrical interfaces, and improve project deployment efficiency for large-scale renewable energy applications.

The system supports oil immersed transformers, dry type transformers, and amorphous alloy transformers according to project requirements, with customized solutions available for capacity, voltage level, protection configuration, monitoring system, and environmental conditions.

Contact Us
PREV：No previous article NEXT：Prefabricated Substation for Wind Power and Photovoltaic (PV) Applications
  • Product Details
  • FAQ

Parameter Specification
Product Type New Energy Hua-type Compact Substation
Rated Capacity 200 kVA–9000 kVA
System Voltage 6 kV–35 kV
Transformer Options Oil Immersed Transformer, Dry Type Transformer, Amorphous Alloy Transformer
Transformer Configuration Two-winding or Three-winding Design
Medium Voltage Equipment Vacuum Circuit Breaker, RMU, Load Switch, Earthing Switch, Lightning Arrester, Protection Relay
Low Voltage System LV Distribution, Control Cabinet, Communication Cabinet, UPS
Monitoring System SCADA, PLC, Temperature Monitoring, Fault Alarm, Event Recording, Remote Communication, GPS Synchronization
Auxiliary System Ventilation, Lighting, Grounding, Fire Protection Interface, Anti-condensation System
Environmental Adaptation Desert Type, High Temperature, High Altitude, Coastal Corrosion, Salt Fog, Dust Protection
Design Standards IEC, GB/T, ANSI/IEEE or Customer Project Specifications

1. What is a New Energy Hua-type Compact Substation used for?
A New Energy Hua-type Compact Substation is mainly used for renewable energy projects such as solar power plants, wind farms, energy storage systems, and renewable microgrids.
It converts and distributes generated power while integrating protection, monitoring, and communication functions.

2. What is the difference between a New Energy Compact Substation and a conventional Box Type Substation?
A conventional Box Type Substation is mainly used for general power distribution.
A New Energy Compact Substation is optimized for renewable energy applications, requiring compatibility with inverters, wind turbines, PCS systems, grid connection protection, and SCADA communication.

3. Which transformer types can be used in the substation?
The system can integrate:
Oil immersed transformers
Dry type transformers
Amorphous alloy transformers
Selection depends on project requirements including capacity, environment, efficiency, maintenance, and safety requirements.

4. Can the substation operate in desert and high temperature environments?
Yes.
Customized designs are available for high temperature, dust, solar radiation, enhanced ventilation, filtration, corrosion protection, and anti-condensation requirements.

5. Can it be used for high altitude renewable energy projects?
Yes.
High altitude projects require verification of insulation coordination, cooling capability, switchgear selection, and equipment derating requirements.

6. Can it support remote monitoring and intelligent operation?
Yes.
SCADA, PLC, communication interfaces, fault alarms, event recording, GPS synchronization, and remote monitoring functions can be configured according to project requirements.

7. Can OEM and ODM solutions be provided?
Yes.
Jiangsu Xinxin Electric supports customized solutions including electrical configuration, enclosure design, protection system, communication interface, branding, and project documentation.

  • Product Features

Integrated Power Conversion Solution
The New Energy Hua-type Compact Substation integrates transformer, medium voltage switchgear, low voltage system, protection, control, communication, and auxiliary equipment into one coordinated solution.
The integrated design helps reduce interface risks between different suppliers and simplifies engineering coordination, installation, and commissioning.

Designed for Renewable Energy Applications
The system is engineered according to renewable energy operating characteristics, including:

Photovoltaic inverter output
Wind turbine generation characteristics
Energy storage PCS operation
Power fluctuation
Harmonic conditions
Grid connection requirements
Electrical parameters including impedance, temperature rise, protection settings, and cable interfaces can be optimized according to project requirements.

Factory Preassembled and System Tested
Major components can be assembled and tested before delivery, including:

Internal wiring verification
Protection logic checking
Interlock testing
Communication function testing
Auxiliary system inspection
This reduces field installation workload and improves project delivery efficiency

Environmental Adaptability
The Box Type Substation can be customized for demanding environments including
Desert areas
High temperature regions
High altitude locations
Coastal salt fog environments
Dusty industrial areas
High humidity conditions
Solutions may include enhanced cooling, anti-condensation systems, corrosion protection, filtering, and enclosure optimization.

  • Application Fields
Application Area
Typical Applications
Industries Served
Solar Power Plants
PV inverter step-up, collector systems, grid connection
Solar developers, EPC contractors
Wind Power Projects
Wind turbine collection and medium voltage boosting
Wind farm developers, energy companies
Energy Storage Systems
PCS connection, bidirectional power conversion, grid support
Energy storage integrators
Renewable Microgrids
Distributed generation and intelligent energy systems
Microgrid developers, system integrators
Utility and Infrastructure Projects
Renewable power distribution and grid expansion
Utilities, EPC companies
OEM & Project Partners
Customized equipment, branding, local standards
Distributors, equipment manufacturers

  • OEM·ODM
Customization Module
Available Options
Electrical Design
Capacity, voltage level, frequency, transformer type, impedance, vector group, loss requirements
Primary Equipment
Oil immersed transformer, dry type transformer, amorphous alloy transformer, RMU, circuit breaker, load switch, lightning arrester
Protection & Communication
Protection relay, PLC, SCADA, communication protocol, remote monitoring, GPS synchronization
Mechanical Structure
Enclosure size, cable entry, lifting structure, foundation interface, ventilation, lighting
Environmental Design
High temperature, high altitude, salt fog, dust protection, corrosion resistance, anti-condensation
Branding & Documentation
OEM nameplate, drawings, manuals, labels, packaging marks, project documents

  • Why Choose Us

Complete Power Equipment Capability
Jiangsu Xinxin Electric provides integrated power solutions including:
Oil Immersed Transformers
Dry Type Transformers
Amorphous Alloy Transformers
Box Type Substations
Medium and Low Voltage Switchgear Systems
This enables EPC contractors and renewable energy developers to coordinate transformer, switchgear, protection, and auxiliary system requirements through one supplier

Controlled Manufacturing and Testing
Production management includes:
Technical specification review
Component inspection
Transformer manufacturing
Enclosure fabrication
Electrical assembly
Protection and communication testing
Final inspection
Testing and documentation can be prepared according to IEC, GB/T, ANSI/IEEE, or customer-specific requirements.

International Project Support
Jiangsu Xinxin Electric provides:
Technical data sheets
Single line diagrams
Assembly drawings
Wiring diagrams
Test reports
Operation manuals
Packing documents
Project documents can be customized according to international renewable energy project requirements.
