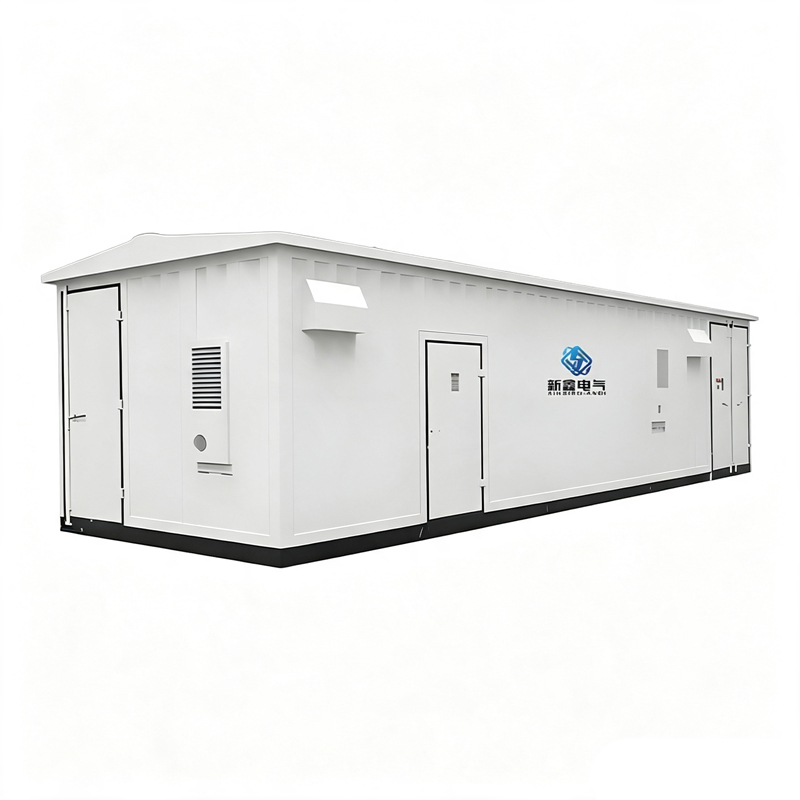

Prefabricated Substation for Wind Power and Photovoltaic (PV) Applications

Prefabricated Substation for Wind Power and Photovoltaic (PV) Applications is an integrated power conversion and distribution solution designed for renewable energy projects including solar power plants, wind farms, and energy storage systems.

As a specialized Prefabricated Substation, the product integrates step-up transformer, medium voltage switchgear, low voltage connection system, protection devices, control system, communication interface, and auxiliary equipment into a factory-assembled enclosure.

Compared with traditional on-site installation solutions, the prefabricated design reduces field wiring, simplifies project coordination, shortens installation time, and improves system integration reliability.

The substation can be configured with oil immersed transformers, dry type transformers, or amorphous alloy transformers according to project requirements. Optional functions include vacuum circuit breakers, RMU, protection relays, PLC, SCADA communication, online monitoring, UPS, and fault recording systems.

The solution can be applied as a Photovoltaic Substation for solar power plants or as a Wind Power Substation for wind energy collection and step-up systems, depending on project requirements.

Contact Us
PREV：New Energy Hua-type / Chinese-style Compact Substation NEXT：European-type Prefabricated Substation
  • Product Details
  • FAQ
Parameter
Specification
Product Type
Prefabricated Substation for Wind Power and Photovoltaic (PV) Applications
Rated Capacity
200 kVA–9000 kVA
System Voltage
6 kV–35 kV
Step-Up Transformer
Oil immersed, dry type, or amorphous alloy transformer
Transformer Configuration
Two-winding or three-winding design
Medium Voltage Unit
Vacuum circuit breaker, RMU, load switch, grounding switch, lightning arrester, protection relay
Low Voltage & Control System
Low voltage connection, control cabinet, communication cabinet, UPS
Monitoring System
SCADA, PLC, temperature monitoring, fault alarm, event recording, GPS time synchronization
Enclosure & Auxiliary System
Ventilation, lighting, grounding, fire protection interface, anti-condensation system
Environmental Adaptation
High temperature, high altitude, desert, coastal corrosion, salt fog, dust and humidity protection
Design Standards
IEC, GB/T, ANSI/IEEE or customer project specifications

1. What is a Prefabricated Substation used for?
A Prefabricated Substation is mainly used for renewable energy projects such as photovoltaic plants, wind farms, and energy storage systems to collect, transform, protect, and transmit generated power.

2. What is the difference between a Photovoltaic Substation and a conventional substation?
A Photovoltaic Substation is specifically designed for solar power systems and considers inverter output characteristics, power fluctuations, communication requirements, and grid connection protection.

3. Can the substation be used for wind power projects?
Yes.
The system can be configured as a Wind Power Substation for wind turbine collection systems, step-up transformation, protection, and communication integration.

4. Which transformer type should be selected?
The selection depends on:
Installation environment
Capacity requirements
Fire safety requirements
Energy efficiency targets
Maintenance conditions
Lifecycle cost
Oil immersed, dry type, and amorphous alloy transformer solutions can all be evaluated.

5. Can it operate in desert or high temperature environments?
Yes.
The substation can be designed with enhanced cooling, dust protection, anti-condensation, and corrosion-resistant solutions according to environmental conditions.

6. Can SCADA and remote monitoring systems be integrated?
Yes.
PLC, SCADA communication, remote monitoring, fault recording, and GPS synchronization can be configured according to project requirements.

7. Can OEM and ODM services be provided?
Yes.
Jiangsu Xinxin Electric supports customized electrical design, enclosure structure, equipment configuration, branding, documentation, and project-specific solutions.

  • Product Features

Integrated Renewable Energy Power Solution
The Prefabricated Substation integrates transformer, switchgear, protection, control, communication, and auxiliary systems into one prefabricated unit.
This integrated design reduces interface coordination between multiple suppliers and improves project execution efficiency.
For photovoltaic projects, the Photovoltaic Substation configuration considers inverter output characteristics, grid connection requirements, and communication interfaces.
For wind energy projects, the Wind Power Substation configuration supports wind turbine collection systems, medium voltage transformation, protection, and monitoring integration.

Factory Assembly and Reduced Installation Work
Major components are assembled, wired, and inspected before delivery.
Compared with traditional field installation, the prefabricated structure reduces:
On-site assembly work
Cable connection complexity
Commissioning time
Project coordination risks
This factory-based approach helps improve installation efficiency and delivery consistency for renewable energy projects.

Flexible Transformer Configuration
The Prefabricated Substation can be equipped with different transformer technologies:
Oil immersed transformer for outdoor and higher capacity applications
Dry type transformer for projects with higher fire safety requirements
Amorphous alloy transformer for improved no-load loss performance
The final selection depends on environmental conditions, efficiency targets, maintenance requirements, and lifecycle cost.

Intelligent Monitoring and Grid Integration
The system supports integration with:
SCADA systems
PLC control
Remote communication
Temperature monitoring
Fault alarms
Event recording
GPS time synchronization
These functions support centralized operation and maintenance of renewable energy plants.

Environmental Adaptability
The substation can be customized for challenging environments including:
Desert areas
High temperature regions
High altitude locations
Coastal salt fog environments
High humidity areas
Dusty industrial environments
Solutions may include enhanced ventilation, anti-condensation systems, corrosion protection, and special enclosure designs.

  • Application Fields
Application Area
Typical Applications
Industries Served
Photovoltaic Power Plants
Solar power generation, centralized PV projects, inverter step-up systems
PV developers, EPC contractors, renewable energy companies
Wind Power Projects
Wind turbine collection systems, medium voltage step-up applications
Wind farm developers, energy system integrators
Energy Storage Systems
PCS step-up, grid connection, energy storage power conversion
Energy storage integrators, microgrid developers
Renewable Energy Infrastructure
Utility-scale renewable projects and distributed energy systems
Utilities, EPC companies, project owners
OEM & System Integration
Customized structure, branding, project documentation
Equipment distributors, electrical integrators

  • OEM·ODM
Customization Module
Available Options
Electrical Design
Capacity, voltage level, frequency, vector group, impedance, tap range, insulation level, loss requirements
Transformer Selection
Oil immersed, dry type, amorphous alloy transformer, two-winding or three-winding configuration
Medium Voltage Equipment
RMU, vacuum circuit breaker, load switch, grounding switch, protection relay, metering system
Control & Communication
PLC, SCADA, communication protocol, remote monitoring, GPS synchronization, fault recording
Mechanical Design
Enclosure size, cable entry, ventilation, lighting, lifting structure, foundation interface
Environmental Protection
High temperature, high altitude, corrosion resistance, dust protection, anti-condensation design
Branding & Documents
OEM nameplate, labels, manuals, drawings, packaging marks, project documents

  • Why Choose Us

Complete Power Equipment Capability
Jiangsu Xinxin Electric provides integrated power equipment solutions including:
Prefabricated Substations
Oil Immersed Transformers
Dry Type Transformers
Amorphous Alloy Transformers
Distribution Equipment
This allows renewable energy EPC contractors and system integrators to coordinate transformer, substation, and power distribution requirements through one supplier.

Controlled Manufacturing and Testing
Production is managed through:
Technical specification review
Component inspection
Transformer manufacturing
Enclosure fabrication
Electrical assembly
Protection and communication testing
Final inspection
Testing can be performed according to IEC, GB/T, ANSI/IEEE, or customer-specific requirements.

International Project Support
Jiangsu Xinxin Electric provides:
Technical data sheets
Single line diagrams
General arrangement drawings
Wiring diagrams
Test reports
Operation manuals
Packing documents
Documentation can be prepared according to international renewable energy project requirements.
